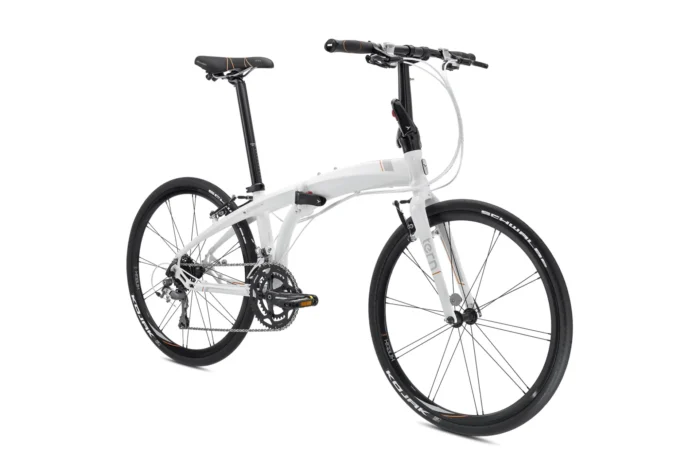

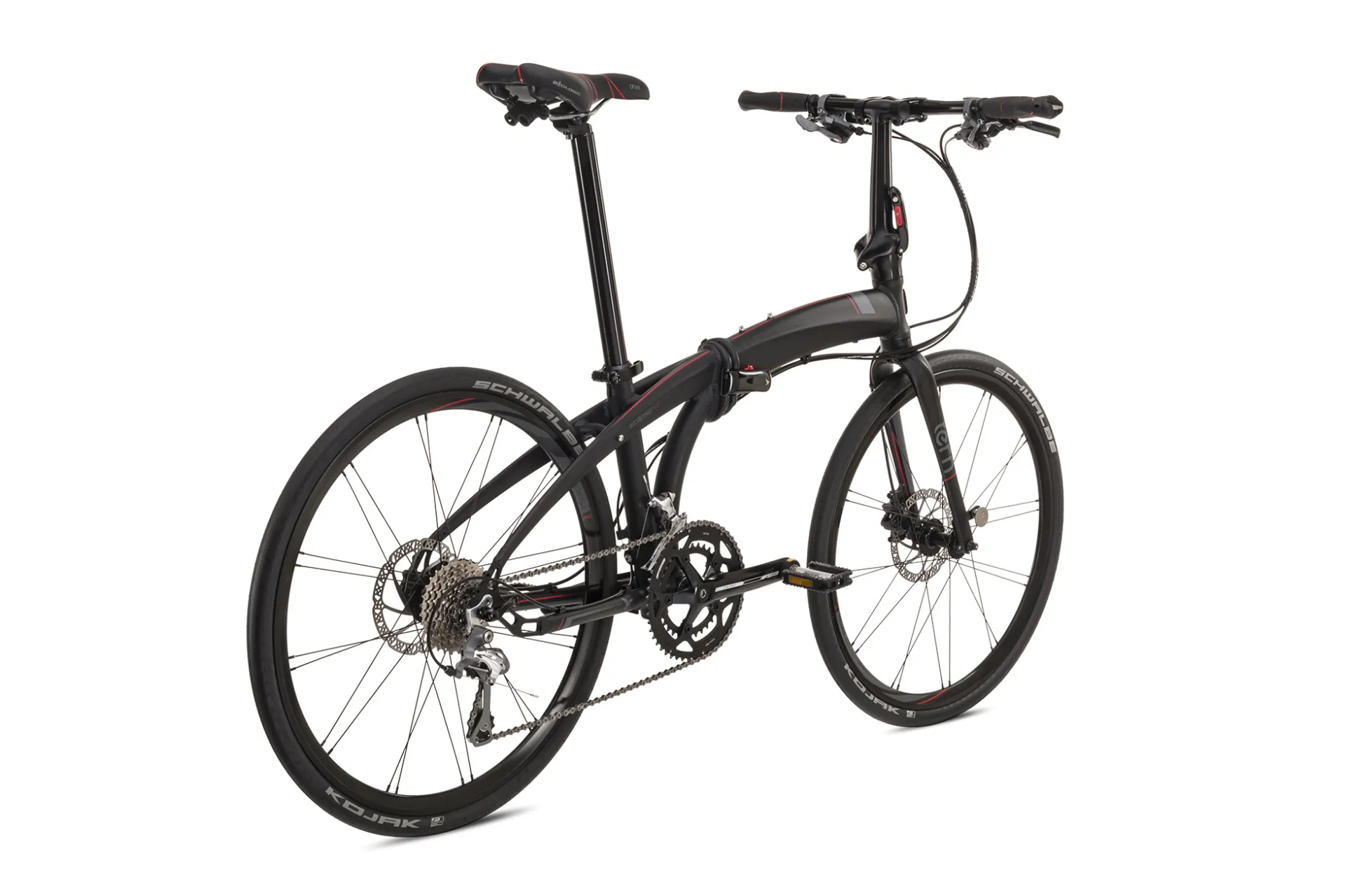

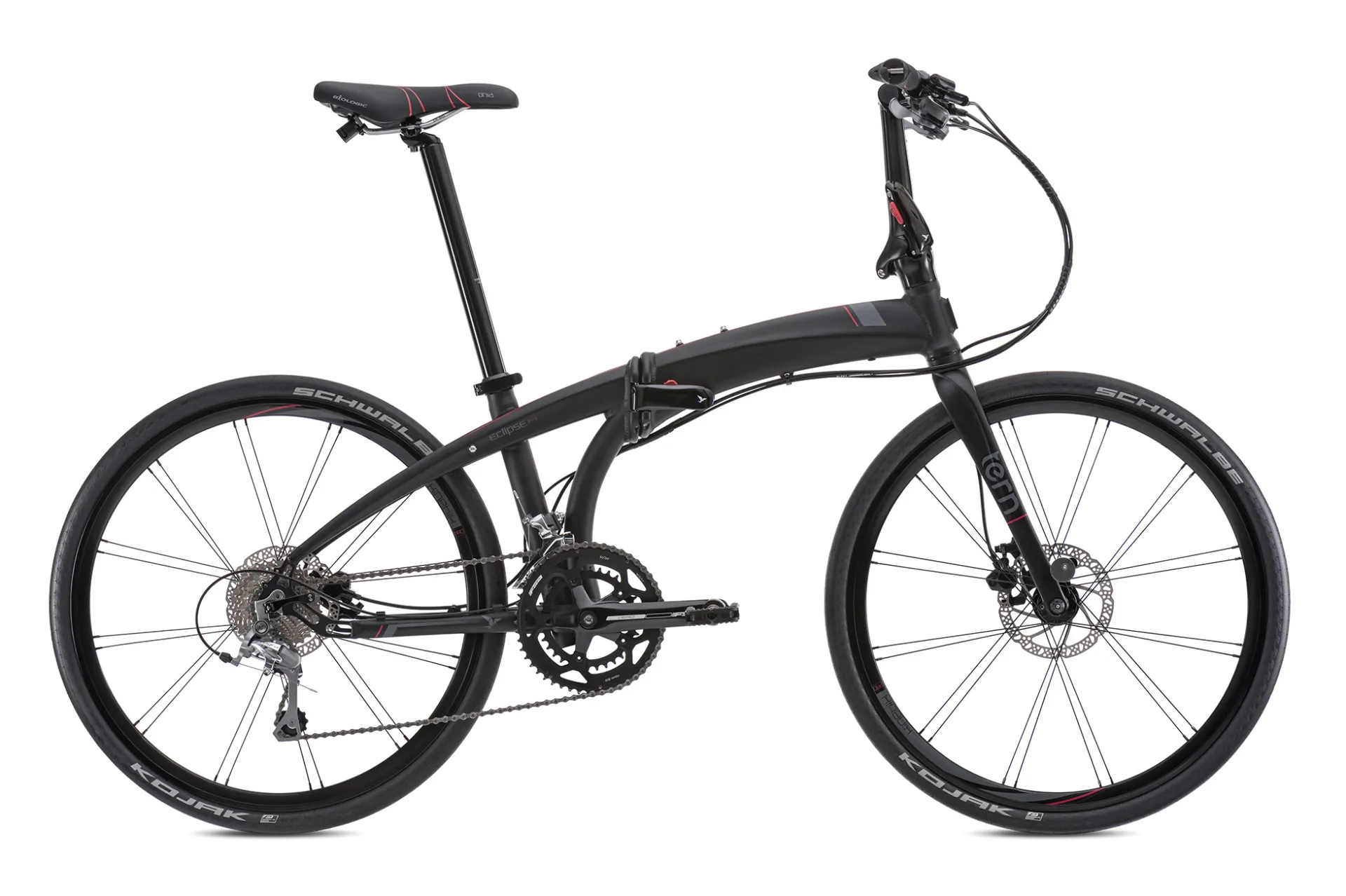

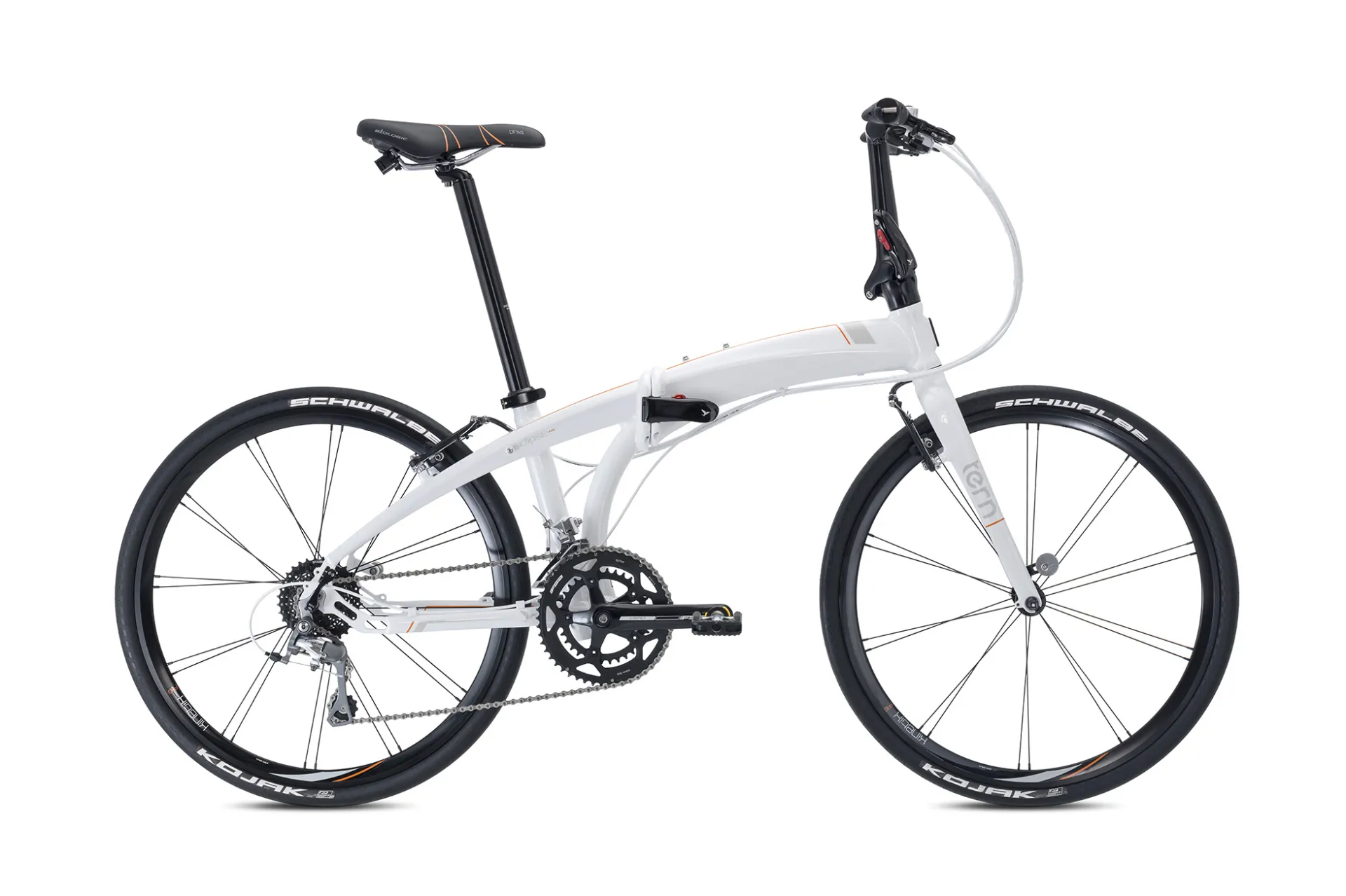

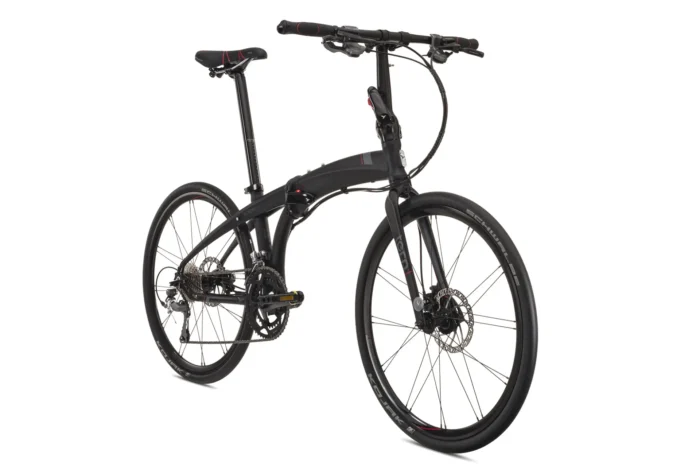

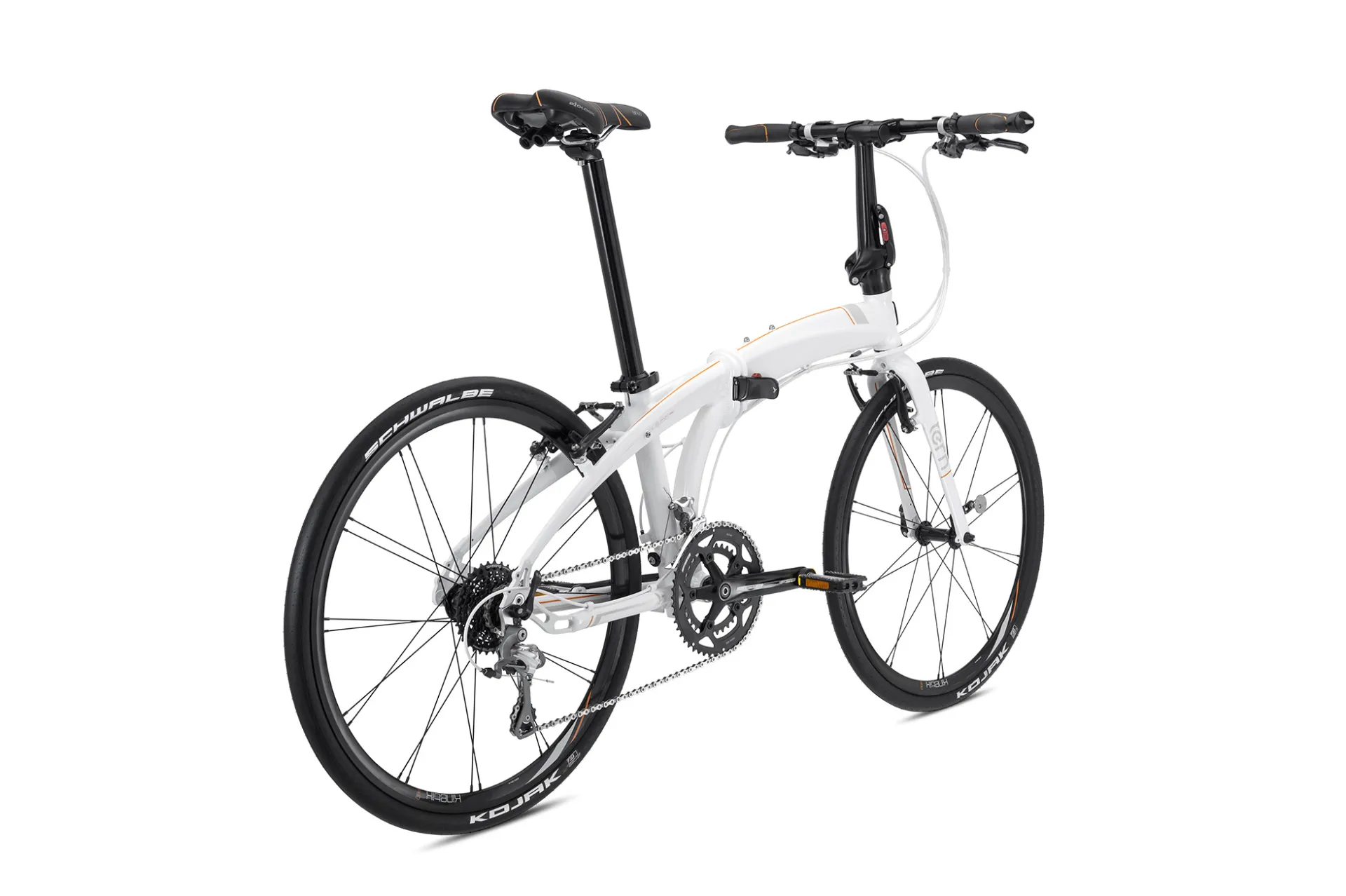

Eclipse P20

Features
OCL+ Frame Joint

Robust folding technology

A heavy-duty update to our iconic OCL frame hinge, the OCL+ is built to exceed ISO 4210 and EN 15194 testing requirements. Leveraging the hinge design of the long-tail
Tern Cargo Node, the OCL+ features a single-shaft design, advanced welding techniques, and robust gussets, so it stays stiff and strong during even the fastest commutes.”

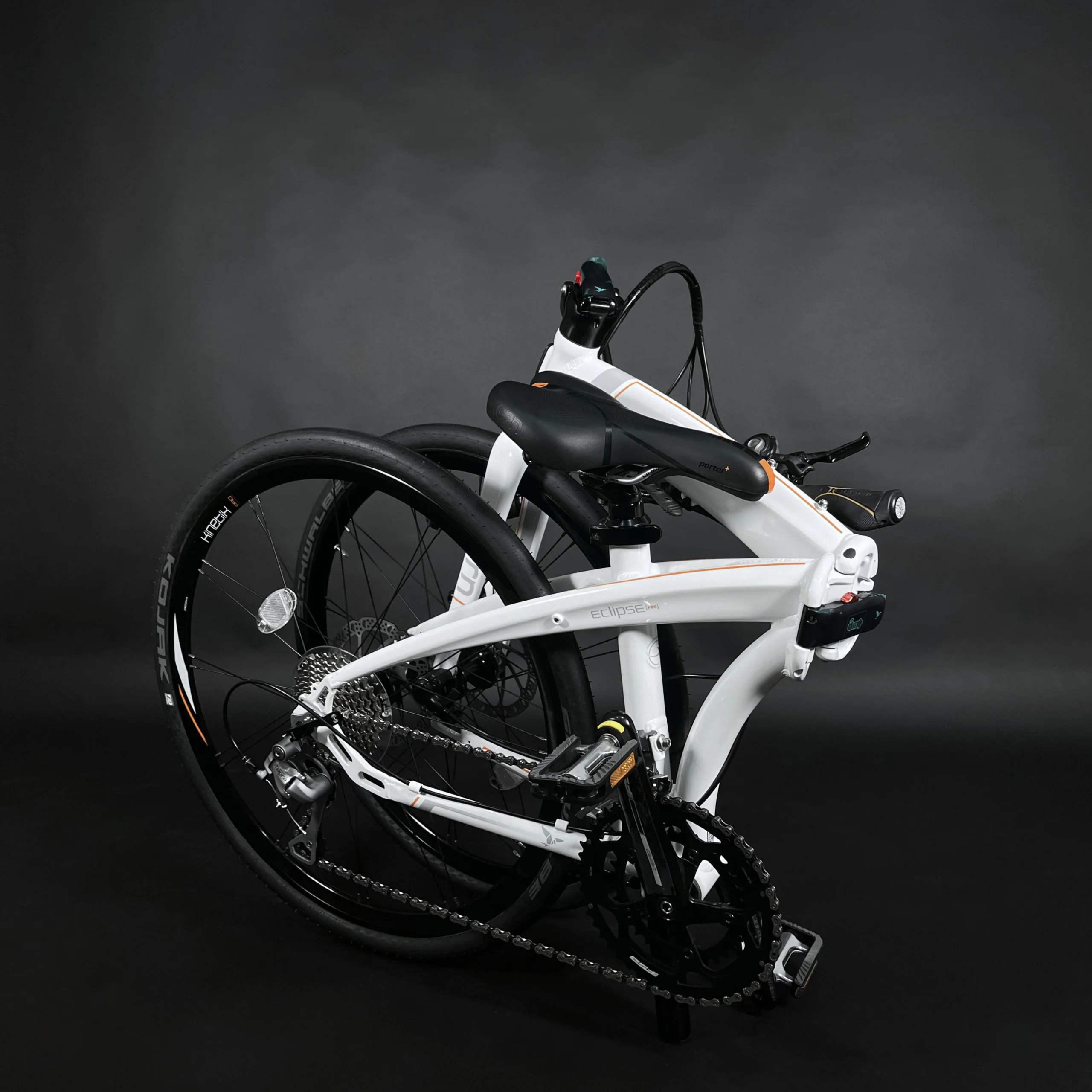

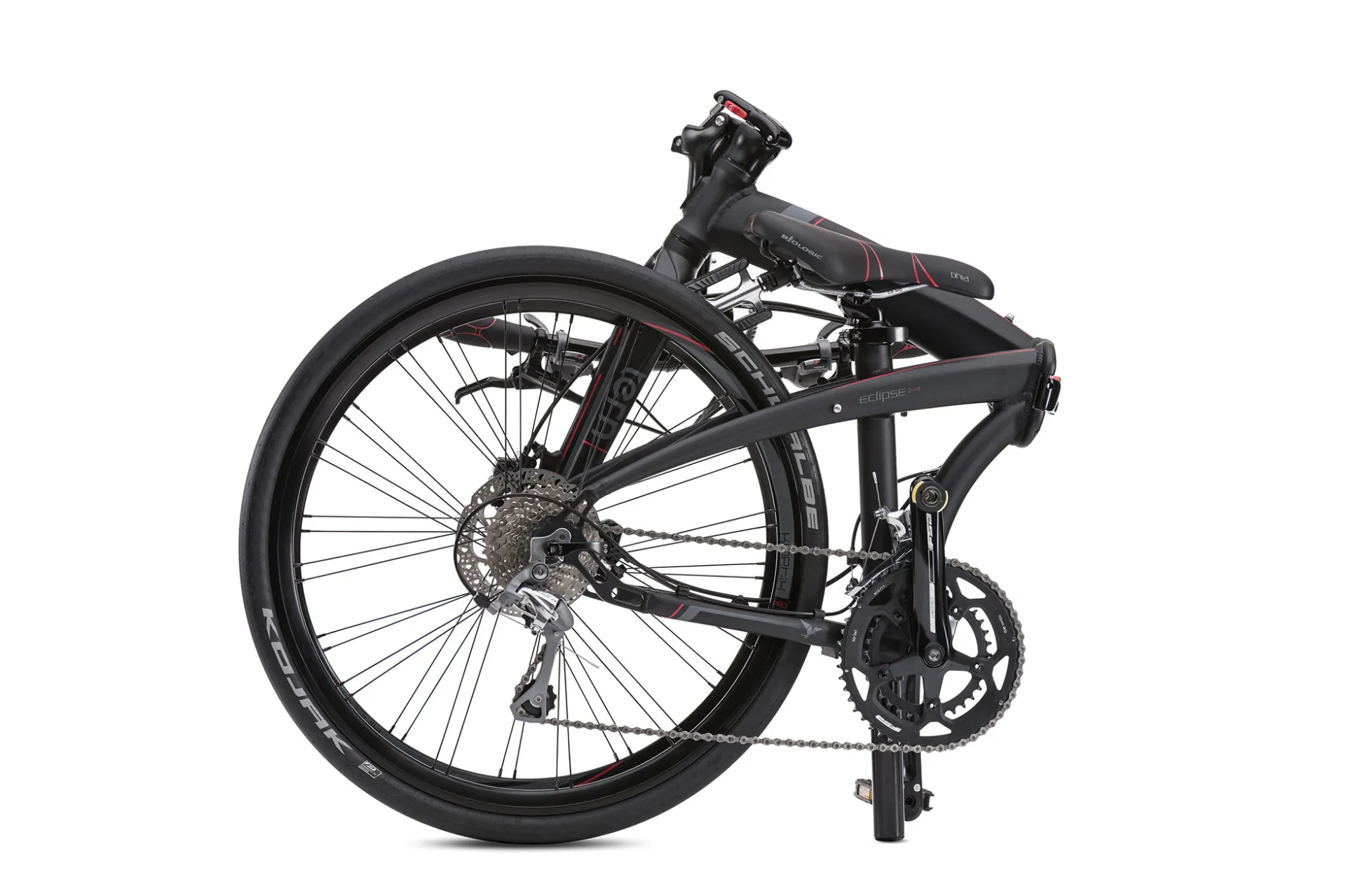

N-Fold Technology

The faster fold

With N-Fold Technology, Tern bikes fold small and fast—in three easy steps. It’s simple enough for anybody to master. And with the handlepost folded to the outside of the package,
Tern bikes can also roll when folded for easy transport.”

DoubleTruss Technology

Stiffer by design

The rear half of Tern frames use a patented 3D structure we call DoubleTruss to build in extra stiffness. It helps resist torsional forces so our bikes flex less.
That means increased stiffness and much better power transfer from the pedals to the rear wheel. The proof’s in the ride.

Physis 3D Handlepost

The new benchmark

Five patented technologies and unique manufacturing technology add up to the strongest, stiffest folding handlepost available. The Physis uses a special manufacturing process
called 3D forging, which forms the post from a single piece of aluminum, eliminating all welds.”

Andros Stem

Adjust to fit

The Andros is our patented adjustable stem that lets you set your handlebars where you want—no tools, no fuss. In just seconds,
you can set your riding position to long and low in a tough headwind, or upright and comfy for riding around town. You decide how you want to ride and the Andros makes your bike fit”

Shimano Nexus® 7 Hub Gear

Everything inside

Shimano tucks 7 smooth and evenly spaced gears inside the rear hub, protected from water, salt, and road grit. The best choice when you need reliability and low-maintenance.

Schwalbe® Big Apple Tires

Cush for your tush

Big Apples are special because they’re fast rolling AND super comfy. Sounds hard to believe but you’ll just have to take them for a ride to become a believer.”

BioLogic FreeDrive

Clean up your act

The BioLogic FreeDrive fits around the chain and keeps grease away from your pants. The unique design moves with the chain so there’s no extra friction.”

Valo Light

Floodlights for your ride

The Valo is a powerful light designed to help you navigate safely at night. The unique design integrates directly into the handlebars of an Andros or
VRO-equipped Tern bicycle so it’s protected from theft and damage. And because it’s hub-dynamo powered, you never need to worry about batteries or charging again.
Flick a switch and you have instant light.

Magnetix 2.0

Keep it together

The Magnetix 2.0 uses powerful magnets to keep your bike folded for situations like carrying your bike up and down stairs. With a pull force 10-15 Kgf,
the Magnetix 2.0 will keep your bike folded even when being jostled and moved about.”

Luggage Socket

Carry more stuff

Fix the Tern Luggage Truss to the Luggage Socket and you can plug in your choice of front luggage: rack, basket, or bag. If it’s KlickFix compatible, it’ll work.”
Loader Rack

A REAR RACK THAT’S READY TO CARRY

Built from 6061 lightweight aluminum and with a triangular design for strengthened support, the Loader Rack carries loads up to 25 kg (55 lb) without a hassle.
This KLICKfix compatible rear rack supports compatible bags and baskets, and its lower side tubes ensure your loaded side panniers always stay in place.

Specifications

GENERAL INFO
SPEEDS:2 x 10
WEIGHT:12.22 kg (26.9 lb)
GEAR INCHES:26″ – 112″ (2.09 – 8.92 m)
FOLDING SIZE:38 × 91 × 80 cm (15 × 35.8 × 31.5 in)
FOLDING TIME:10 sec
FRAME SIZES:One size
DISTANCE: SEATPOST TO HANDLEBAR:63 – 70 cm (24.8 – 27.6 in)
DISTANCE: SADDLE TO PEDAL:77 – 104 cm (30.3 – 40.9 in)
SUGGESTED RIDER HEIGHT:148 – 195 cm (58.3 – 76.8 in)
MAX GROSS VEHICLE WEIGHT:120 kg (264.6 lb)
MAX RIDER WEIGHT:105 kg (231.5 lb)

FRAME
FRAME:Tern Eclipse, hydroformed aluminum w/ smooth TIG welding, OCL+ joint, 3 patented technologies
FORK:Tarsus, 6061-AL, hydroformed”

COCKPIT
HANDLEPOST:Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 250 mm

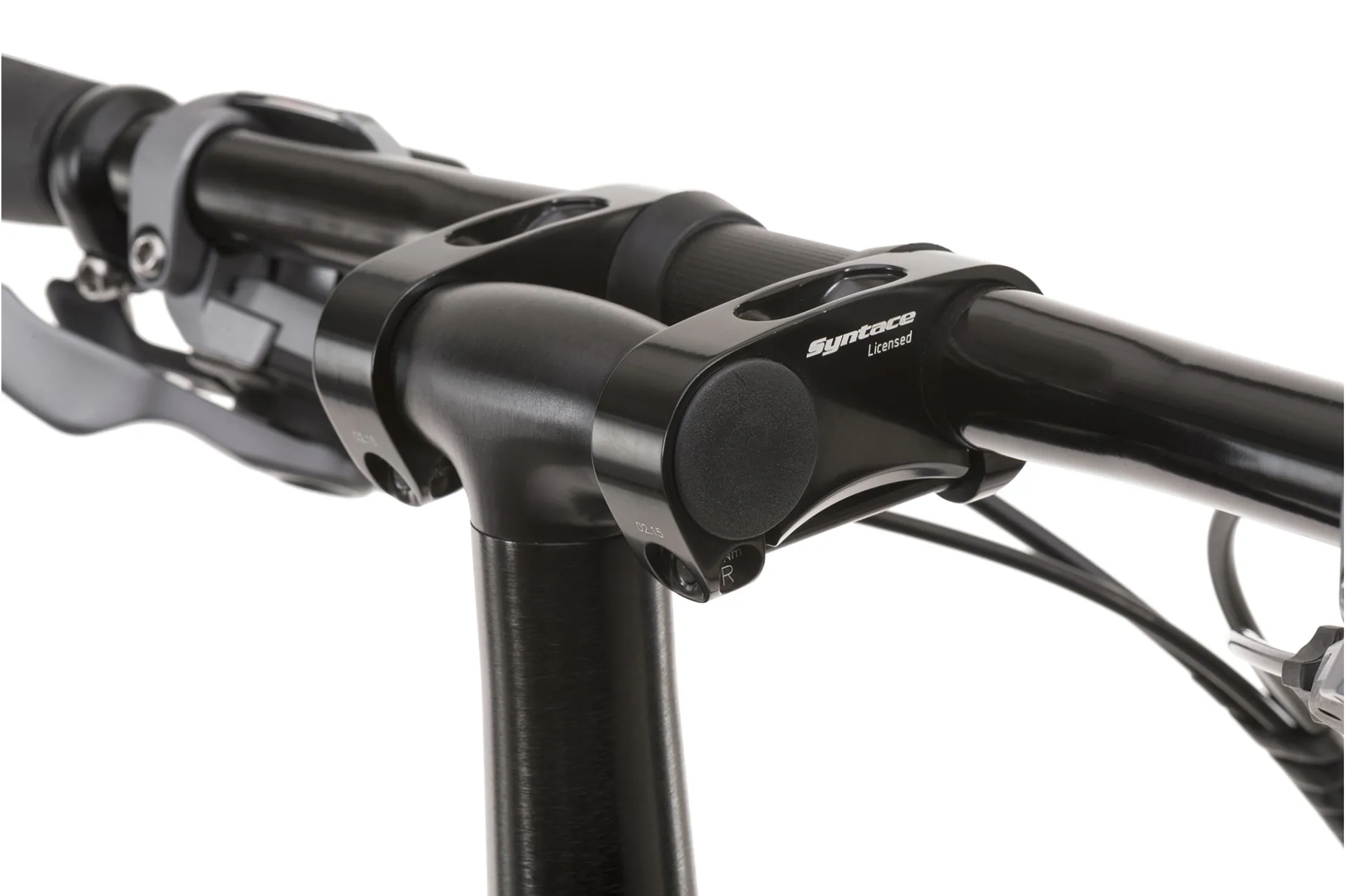

STEM:Syntace VRO, adjustable
HEADSET:Flux, cartridge bearings, Physis integrated
HANDLEBAR:Kinetix Comp, 6061-Al, VRO butted
GRIPS/BAR TAPE:BioLogic Arx
SADDLE:Tern Porter+, patented GripPad design, PrimeGel padding
SEATPOST:SuperOversize, 6061-Al, forged clamp
SEATPOST CLAMP:Syntace OverLock”

BRAKES

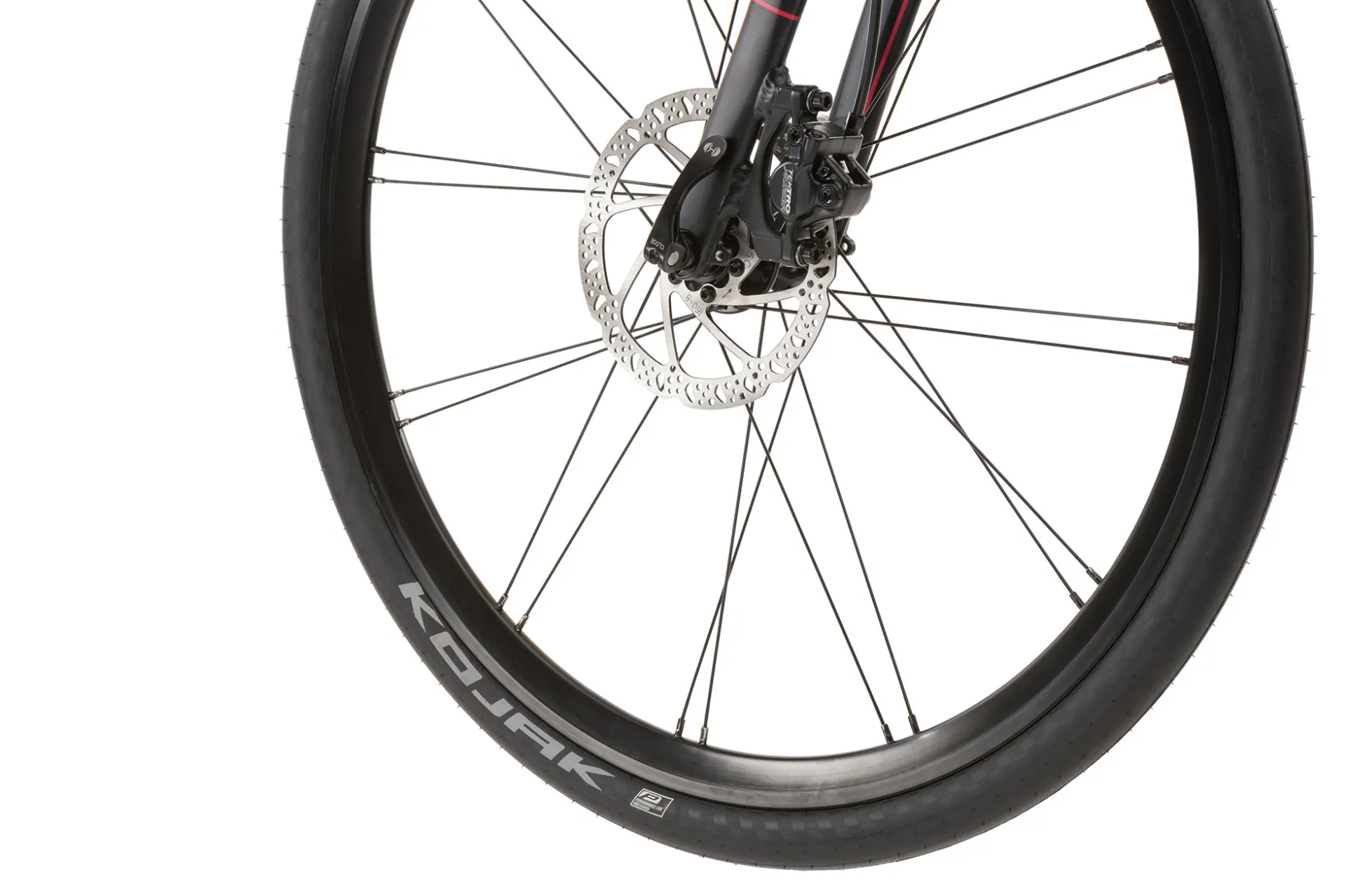

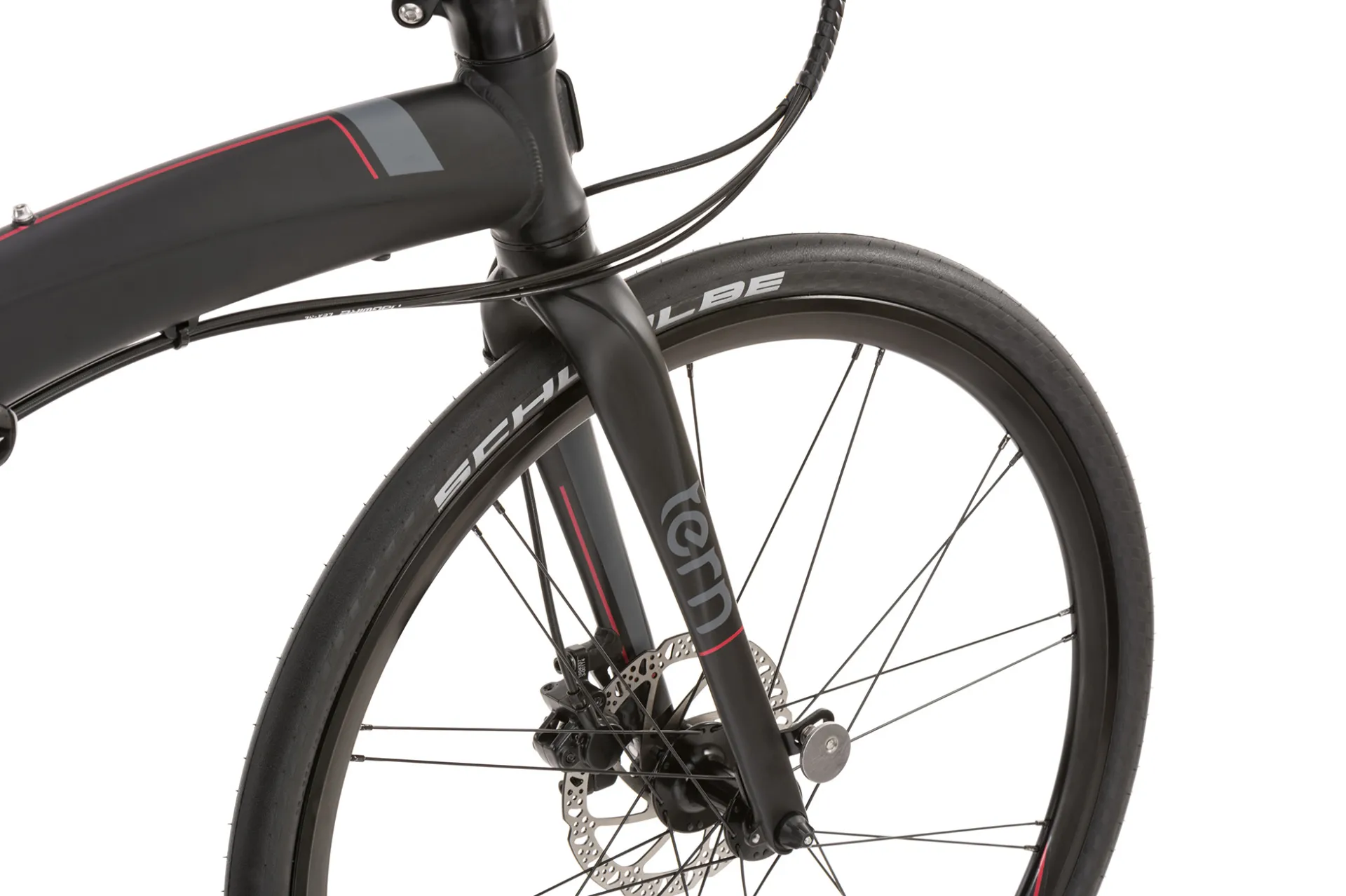

FRONT BRAKE:Tektro Auriga, hydraulic disc
REAR BRAKE:Tektro Auriga, hydraulic disc
BRAKE LEVERS:Tektro Auriga, hydraulic disc
BRAKE CABLE & HOUSING:Tektro Auriga, hydraulic”

WHEELS
FRONT WHEEL:
Kinetix Pro Disc, Paired Spoke technology, Shimano Centerlock, 20H
REAR WHEEL:
Kinetix Pro Disc, Paired Spoke technology, Shimano Centerlock, 20H
SPOKES & NIPPLES:
Double-butted 18/10 stainless, Sapim Polyax nipples
TIRES:

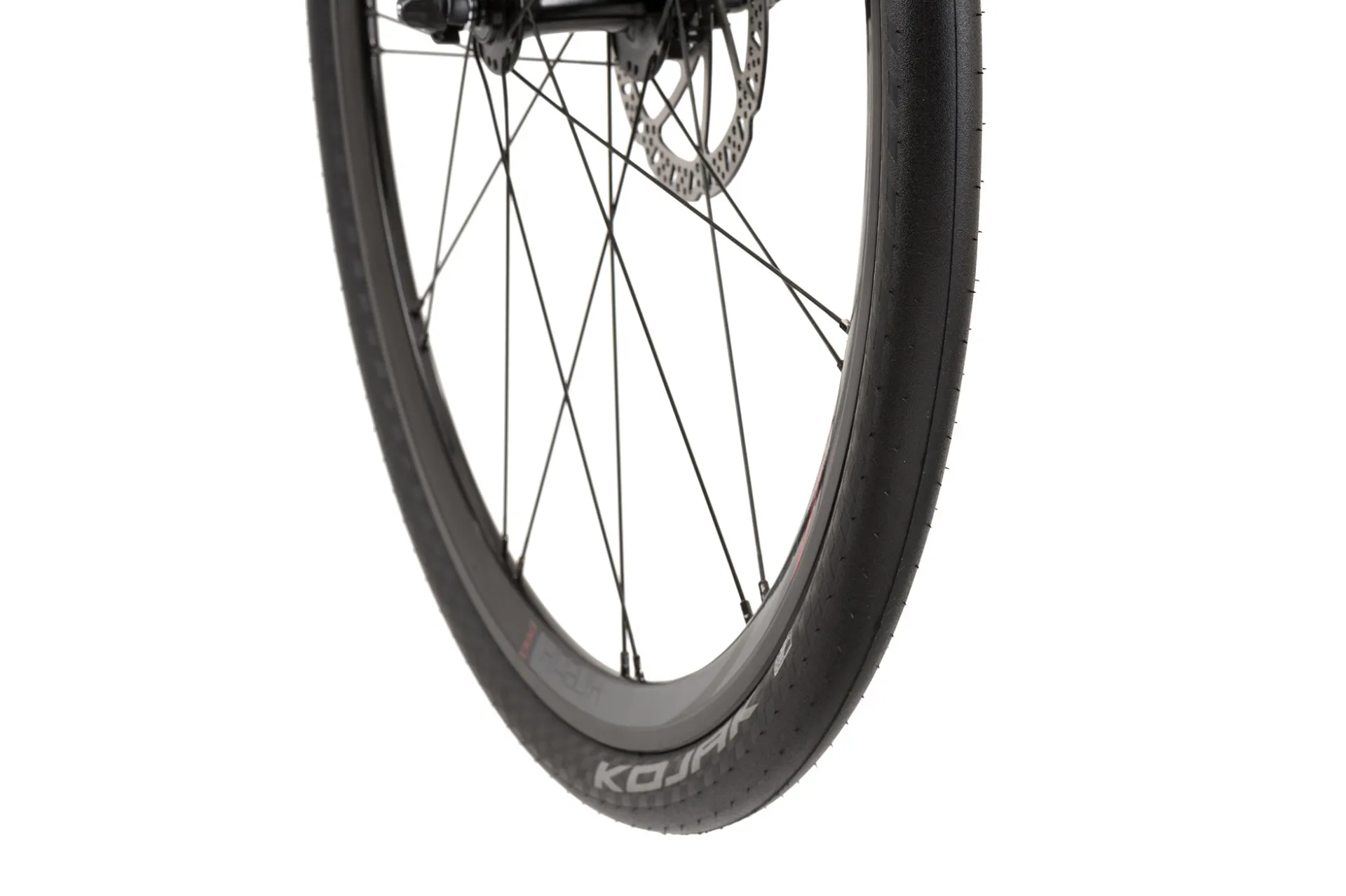

Schwalbe Kojak, 35-559, foldable, puncture protection, 95 psi”

TRANSMISSION
SHIFTER(S):Shimano Tiagra trigger, 2×10 spd
FRONT DERAILLEUR:Shimano Tiagra

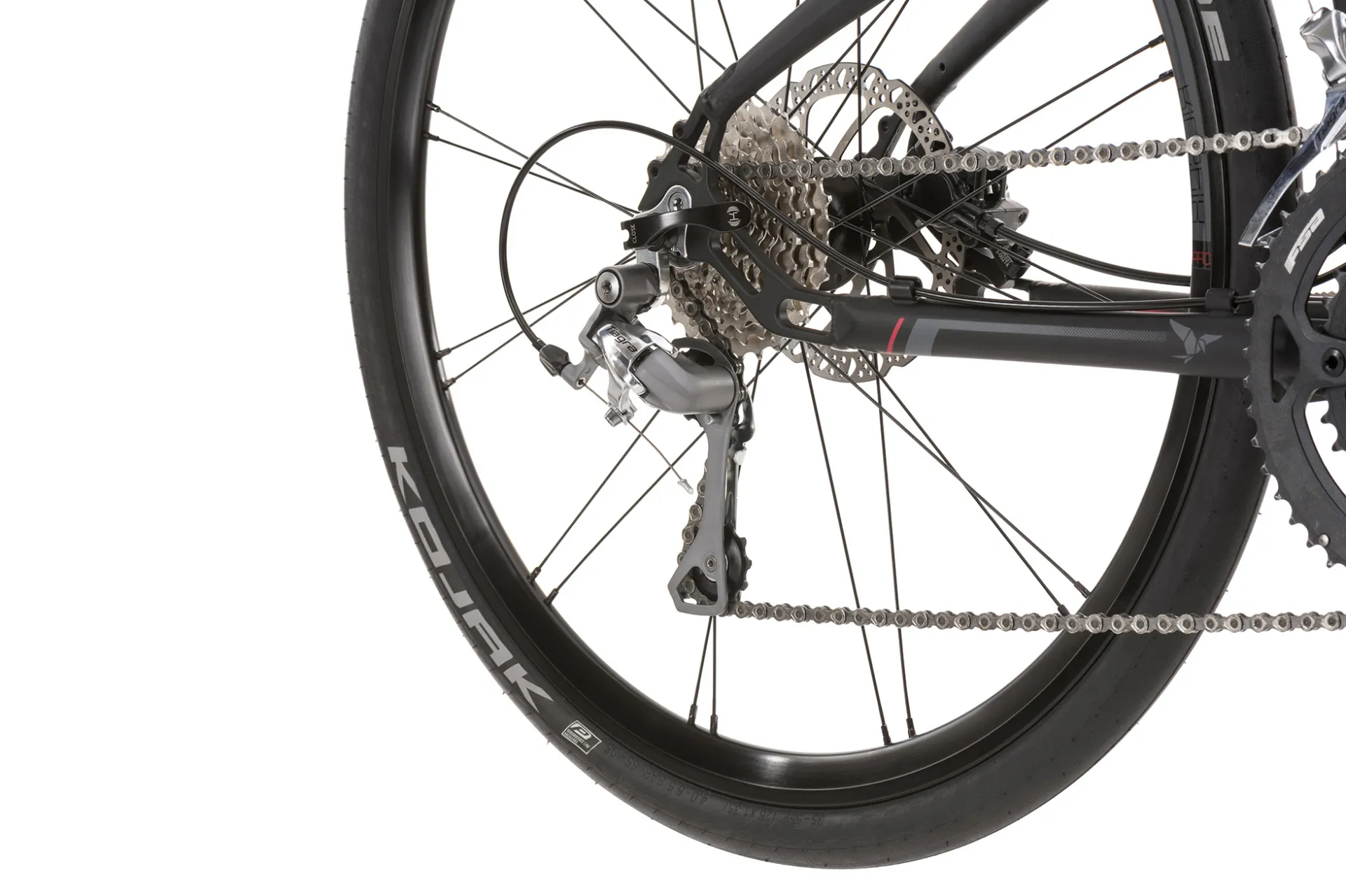

REAR DERAILLEUR:Shimano Tiagra

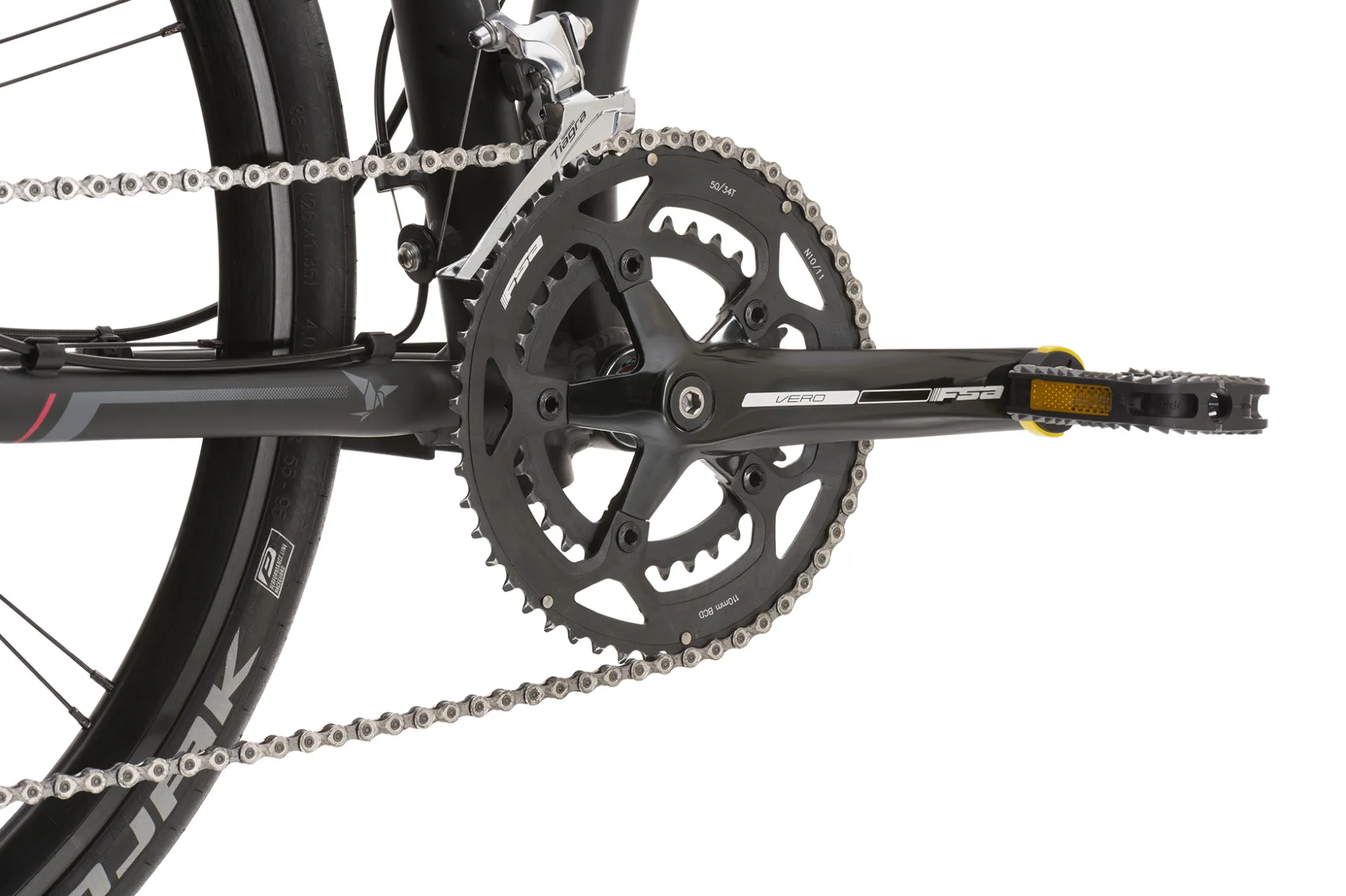

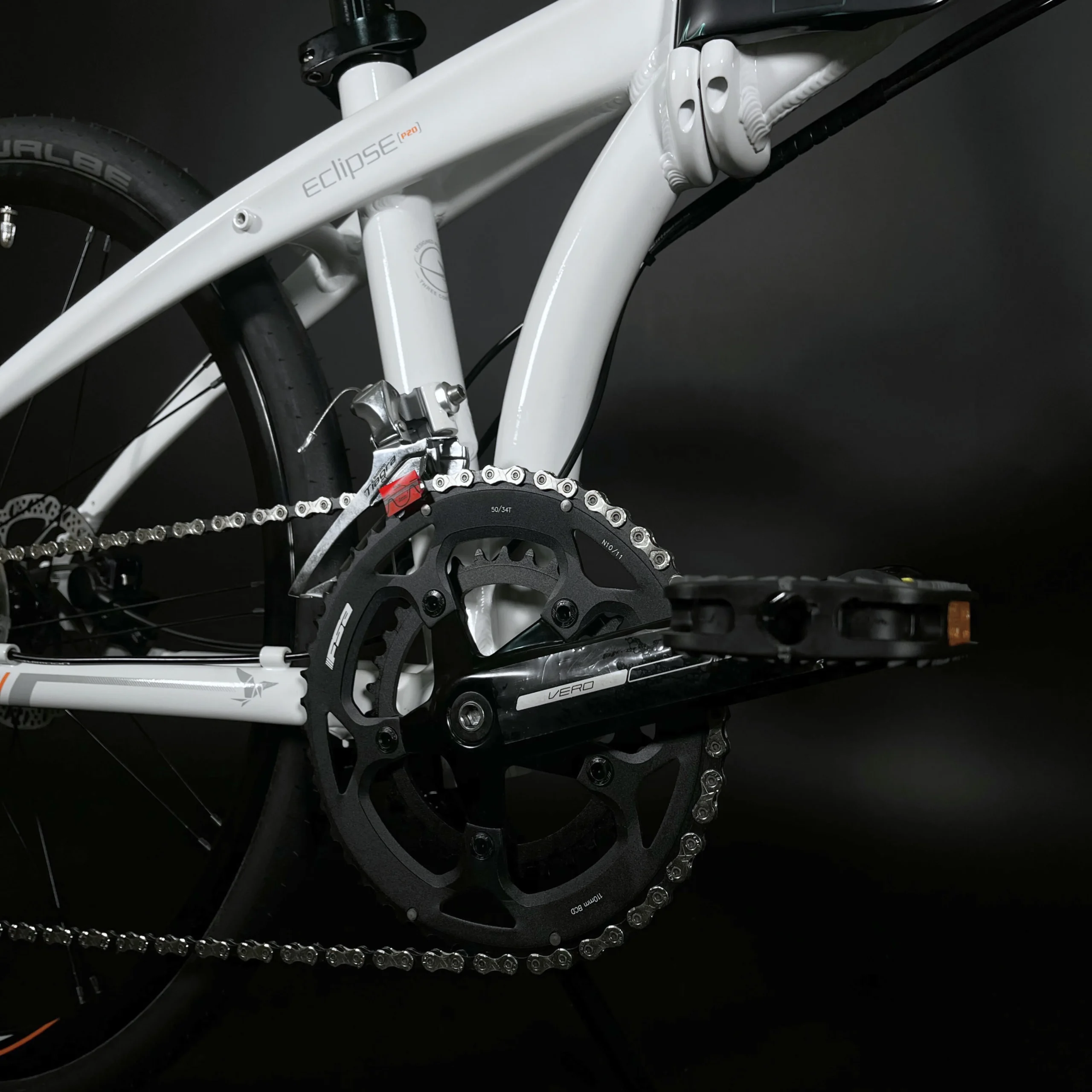

CRANKSET:FSA Vero, 50/34T
CASSETTE/FREEWHEEL:Shimano Deore, 11-32T, 10 spd
BOTTOM BRACKET:Cartridge, sealed bearings
CHAIN:KMC X10
PEDALS:LiteForm QR, alloy body, QR right/standard left
SHIFTER CABLE & HOUSING:Jagwire LEX-SL, slick treatment, alloy ferrules”

BELLS & WHISTLES
BELL:Pitch, brass
KICKSTAND:Premium center mount
CLIP SYSTEM:Magnetix 2.0
LUGGAGE SOCKET:Yes
REAR LIGHT:BioLogic TailLight
ACCESSORY:Pedal Holder
